4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 - $5,000 (Leduc)

‹ image 1 of 14 ›

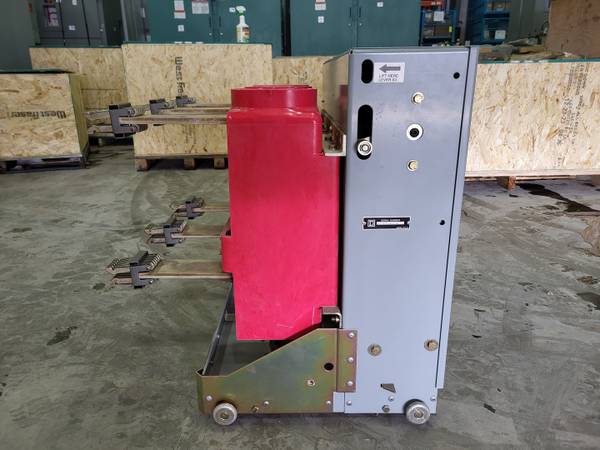

4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 1
4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 1 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 2 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 3 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 4 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 5 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 6 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 7 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 8 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 9 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 10 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 11 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 12 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 13 thumbnail4.76 kV, 1200A Medium-Voltage Circuit Breaker V5D3153YJ00 14 thumbnail
6226 41 St

google map

condition: good
make / manufacturer: Square D
model name / number: V5D3153YJ00

QR Code Link to This Post

SKU: 119755

Serial Number: 17-52170
Amps: 1200 amps
Type: VR
Rated Maximum Voltage: 4.76 kV
Voltage Range Factor "K": 1.24
Impulse Withstand (BIL): 60 kV
Frequency: 50/60 HZ
Continuous Current: 1200 A
Short Circuit Current: 29 kA SYM
MVA Class Reference: 250 MVA
Interrupting Time: Class 3
Closing Coil Voltage Range: 107-1247 VAC
Closing Coil Current: 6.9 A
Tripping Coil Voltage Range: 70-140 VDC
Tripping Coil Current: 0.7 A
